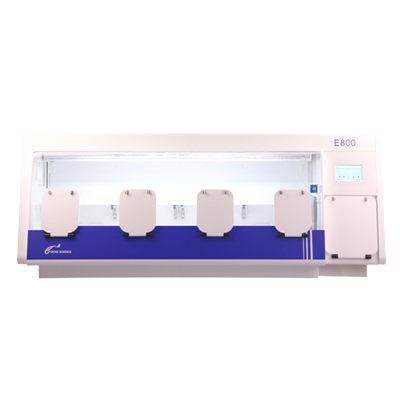

E800 Anaerobic workstation

Used for inoculation, continuous cultivation, passage, medium conversion, observation, identification, and other work of microorganisms in anaerobic (microaerobic) environments. It can simultaneously cultivate Shigella (anaerobic, 41.5 ℃), Campylobacter jejuni (microaerobic, 25 ℃), Clostridium perfringens (anaerobic, 36 ℃), and Clostridium botulinum (anaerobic, 35 ℃) lactic acid bacteria (anaerobic, 36 ℃) in the national standard.


1.Power supply : 110V-220V, 50/60Hz, maximum current: 8A, environmental conditions: ambient temperature 25 ℃, humidity<90% 2.Equipped with a built-in fast transfer gate, with a capacity of 20 liters, it can transfer 60 90mm plates at a time, making it easy to transfer into a triangular bottle or homogeneous bag. The height of the triangular bottle or reagent bottle is required to be less than 185mm. The transfer gate uses N2 blowing to successfully transfer the sample or equipment out or into the workstation within 60 seconds. 3.Large capacity: can accommodate 1200 90mm plates, 250mL triangular bottles>120; More than 80 500mL triangular bottles; 250mL reagent bottles>160; More than 120 500mL reagent bottles; Homogeneous bags can hold over 160 pieces.

4.Equipped with built-in HEPA (U16) filter, with a filtration efficiency of 99.9995% @ 0.12 μ M; Up to ISO14644-1 class 3 standard

5.Oxygen control range:
anaerobic mode: below 50ppm,
low oxygen mode: 0.1-20%, 0.1% increase,
carbon dioxide control range: 0.1-20%, 0.1% increase
