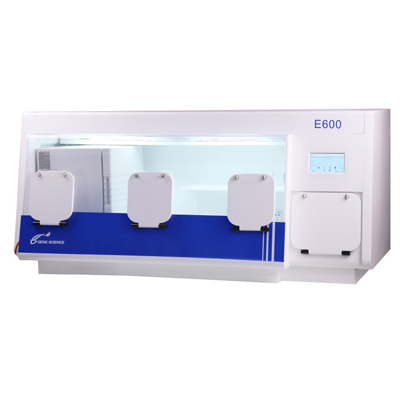

E600 Anaerobic/Hypoxic Workstation

Used forinoculation,continuouscultivation,passage,mediumconversion,observation,identificationand other work of microorganisms inanaerobicand hypoxicenvironmentsAble to cultivate anaerobic and microaerobic bacteria:Capable of celculture and precise control of oxygenand carbon dioxide concentrations; Cell experiments such as intermittenthypoxia,high and low oxygenfluctuations,extreme high andlow oxygen,andintermittent hypoxia canbe conducted.

Description

Highlights

1. Control oxygen concentration and simulate a low oxygen environment in the body.
2. Control the concentration of carbon dioxide and provide the best conditions for cell growth.
3. Fully automatic humidity control system, perfect humidity regulation.
4. Equipped with HEPA filtration system.



Technical Parameter

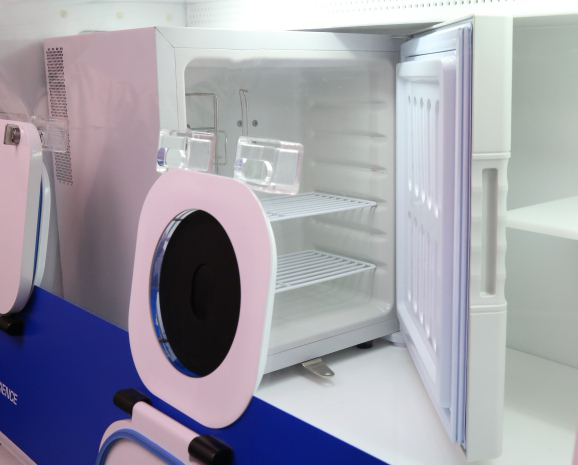

1.    Equipped with a built-in fast transfer box, with a capacity of 20 liters, it can transfer 60、90mm plates at once.The transfer box uses N2 blowing to successfully transfer the sample or equipment out or into the workstationwithin 60 seconds.

2.    Equipped with transfer gate intelligent protection function, ensuring that the internal environment is not affected.

3.    The opening and closing of the internal door of the transfer gate with one hand and one button operation is simpleand convenient.

4.    Large capacity: can accommodate 900 90mm plates.

5.    Parameter settings, device status monitoring, and alarms are all implemented on a color 7′ touch screen.

6.    The workstation is equipped with a built-in HEPA(U16)filter, with afiltration efficiency of 99.9995% @ 0.12 μM:Meet thelS014644-1 class 3 standard.

7.    With fluorescentlamp,254nm ultraviolet sterilization lamp.

8.    Oxygen control range: Oxygen controlrange:anaerobic mode below 5ppm,hypoxic mode 0-20%,0.1%increase; Carbon dioxide controlrange: 0-20%, increasing by 0.1%.

9.    Equipped with 6-stage O,and CO, gas circulationfunction, it can set different gas concentration targetvalues,time,and cycle times.Experiments such asintermittent hypoxia, high and low oxygen fluctuations,extreme hypoxia, and intermittent hypoxia can be conducted, the data downloaded through USB.

10.  Equipped with a built-in long sleeve operating system, fully sealed design ensures that 100% oxygen is notintroduced when entering the workstation, No vacuum pump is required to avoid insufficient length andcumbersome operation of external long sleeve sleeves.

11.  With 3 built-in waterproof power sockets.

12.  Data recording: A data recording system with USB interface that can record O, concentration, COconcentration, temperature, humidity, and intake time, with a data recording time of up to 30 days.

13.  The alarm system includes: high and low temperature alarm, humidity range exceeding alarm, anaerobicmixed gas, nitrogen, CO,, compressed air low pressure alarm, gas leakage alarm; Equipped with anautomatic gas overcurrent protection device, it automatically closes the intake solenoid valve aftercontinuous intake for more than 5 minutes.

14.  Timed gassing system: the gassing time can be set and displayed on the touch screen; the fast mode timecan be set arbitrarily and displayed on the touch screen.

15.   Equipped with efficient palladium catalyst, it does not require frequent activation and can be used for 4Vears.

16.   Temperature: RT+3℃-52 ℃, display accuracy 0.1 ℃, average degree ± 0.3 ℃.

17.   Dimensions: (LxHxD) 1680x730x680mm.
