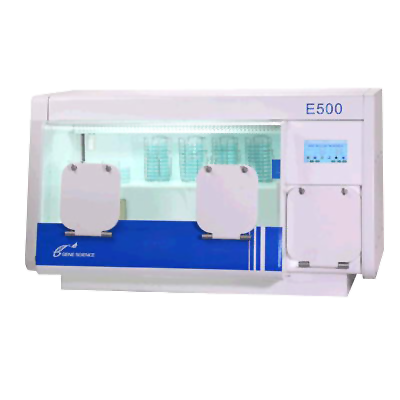

E500 Anaerobic workstation

Inoculation, continuous cultivation, passage, medium transformation, observation, and identification of microorganisms in anaerobic (microaerobic) environments. It can simultaneously cultivate Shigella (anaerobic, 41.5 ℃), Campylobacter jejuni (microaerobic, 25 ℃), Clostridium perfringens (anaerobic, 36 ℃), Clostridium botulinum (anaerobic, 35 ℃), lactic acid bacteria (anaerobic, 36 ℃


Equipped with a built-in fast transfer gate, with a capacity of 12 liters, it can transfer 40 90mm plates at a time, making it easy to transfer them into a triangular bottle or homogeneous bag. The height of the triangular bottle or reagent bottle is required to be less than 185mm. The transfer gate uses N2 blowing to successfully transfer the sample or equipment out or into the workstation within 60 seconds.

Large capacity: can accommodate 760 90mm plates, 250mL triangular bottles>80; More than 50 500mL triangular bottles; 250mL reagent bottles>100; More than 80 500mL reagent bottles; Homogeneous bags can hold over 100 pieces.

Functional features:

1. Control oxygen concentration and simulate a low oxygen environment in the body.
2. Control the concentration of carbon dioxide and provide the best conditions for cell growth.
3. Fully automatic humidity control system, perfect humidity regulation.
4. HEPA filtration system can be optional.
5. Sleeveless operation and traditional sleeve operating system are optional.
6. Flexible switching between anaerobic mode and low oxygen mode, or only anaerobic mode can be configured
